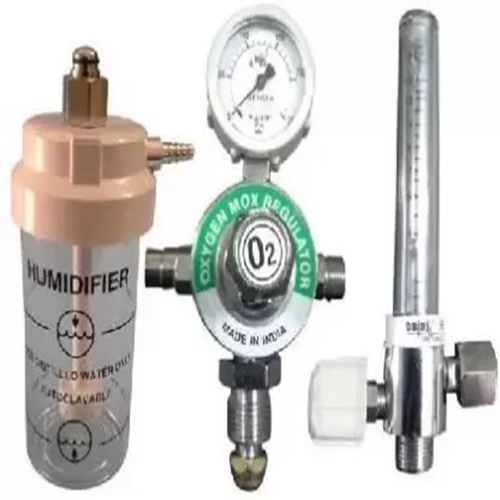

Oxygen Regulator with Pressure
Mox Oxygen regulator has a factory preset
fixed static outlet pressure of approx. 4.2 kg/Sq.cm (60lbs/sqin) and is
fitted with safety valve. Once the flow rate has been set, the
regulator will automatically maintain a constant flow rate irrespective
of changing volume of cylinder contents. If the oxygen line distal to
the regulator should be blocked, the regulator automatically prevents
the build up of an excessive pressure in the apparatus and tubing
between the outlet of the regulator and the obstruction. A pressure
gauge indicates the cylinder contents. NITROUS OXIDE REGULATOR IS ALSO
AVAILABL. The Back Pressure Compensated(BPC) flowmeter incorporates a
rotary pin valve control to permit adjustment of the flow rate to any
desired level between 0-15 ltrs/min.Humidifier Bottle (Nut on Type) is
Autoclavable, consist of an unbreakable jar with nut on cap fitted on
top inlet and side outlet tubes. The inlet tube ends in a specially
designed diffuser from which oxygen is bubbled through water before
reaching the outlet.
