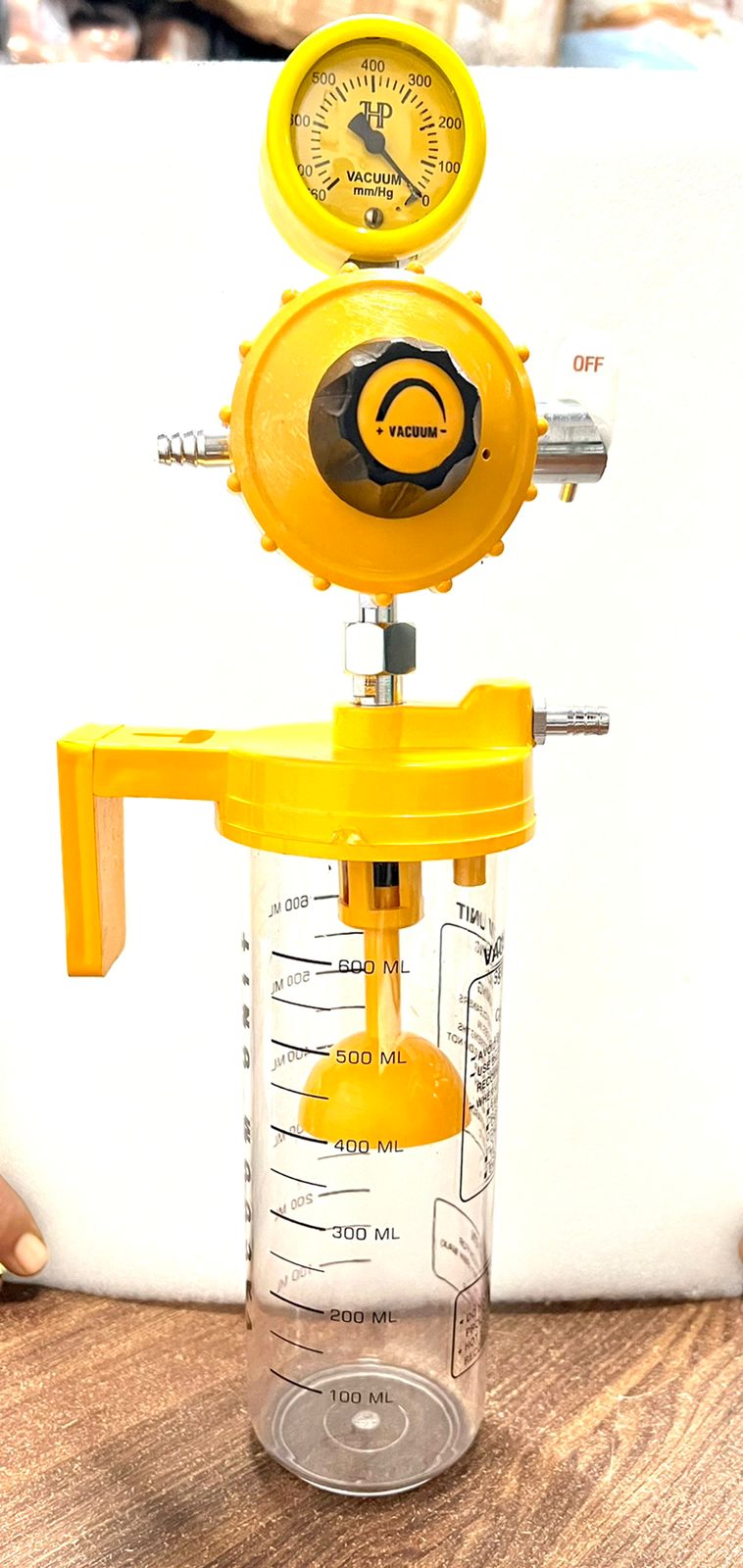

Vacuum Regulator with 600ml Jar
Regulator Specification :
- Service : Vacuum
- Aluminum Anodized Body
- Brass Chromeplated� Components
- Vacuum Pr. Gauge Range 0-760mm of Hg
- Flow upto 1200 LPH
- ABS Plastic colour coded caps
- on/off switched in regulator to start/close vacuum
- Neoprene Diaphragm & seals�
600 ml Jars are printed with readings to show the volume of fluid extracted from patient. This unit is supplied with ABS clamp. This clamp can be fitted on wall directly with the help of screws. We also supply spares like wall clamps, rubber gaskets for Jar and washer for float assembly for the products supplied by us.
Jar Specification :
- 600Capacity Jar with safety trap
- Unbreakable clear & Autoclavable Polycarbonate Jar
- Brass Chromeplated� components
- ABS Plastic colour coded caps
- Clear Marking of Fluid Level & Instructions.
- Wall Mountable Handle & clamp�� �

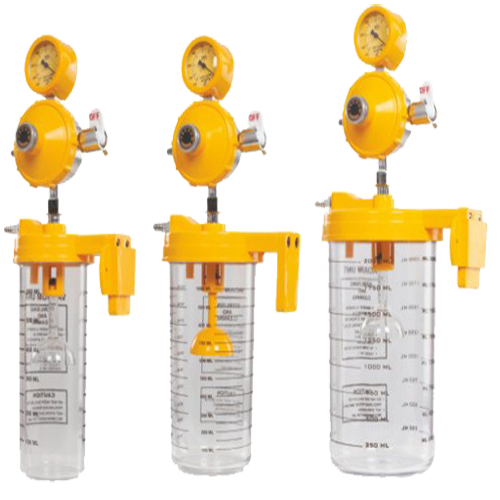

Ward Vaccum Unit
Vacuum regulator represents the ultimate in vacuum control.High(0-760mm Hg),Medium(0-500mm H) & Low suction(0-200mm Hg).These cover all the medical central pipeline applications of the operation theatres & wards.The regulators are designed to provide simple & safe operation with ease of maintenance.The jars are made up of polycarbonate, unbreakable, shatter resistant & autoclavable. ABS is use for other components to withstand hard usage and provide trouble free service over a longer period of time. The Brackets fits directly on the wall. A well proven fluid control trap fitted on the unit automatically and efficiently shuts off vacuum fully, preventing the transfer of liquid to the vacuum regulator, pipeline and pump.
